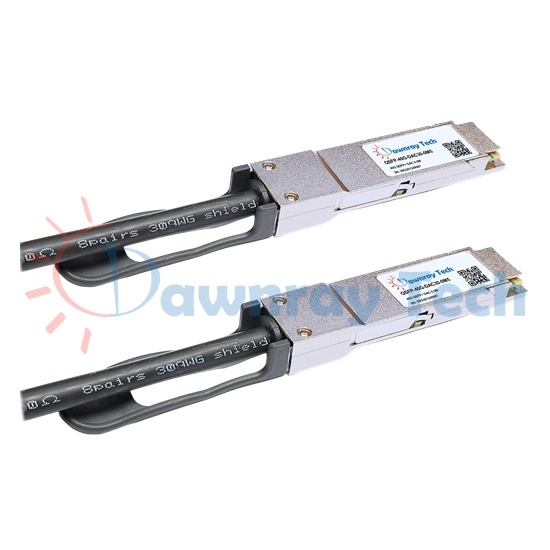

0.5m (1.64ft) Generic QSFP-40G-DAC30-0M5 Compatible QSFP+ to QSFP+ DAC 40GBASE-CR4 40Gbps Passive Direct Attach Twinax Copper Cable
Dawnray’s QSFP-40G-DAC30-0M5 DAC is a passive 40Gbps QSFP+ to QSFP+ direct attach cable for use in 40GBASE Ethernet network. QSFP+ DAC provides 41.25Gb/s throughput for 0.5m interconnection with high speed twin-axial copper cable. This DAC is fully compliant with QSFP+ Multi-Source Agreement (MSA), IEEE 802.3ba 40GBASE-CR4 and XLPPI standard. Its twin-axial copper cable’s wire gauge is 30AWG and pre-terminated with MSA compliant 38-pin edge type connectors. The DAC cable implements 4 independent 10.3125Gbps NRZ transmit and receive signal channels in each differential pair for an aggregate 41.25Gbps data rate. Standard length options cover from 0.5 meters to 7 meters. MSA memory map is accessible via 2-wire (TWI/I2C) interface. Our DACs are factory pre-programmed for compatibility, perform alternatively to generic/MSA direct attach cables.
Feature
- Hot pluggable QSFP+ to QSFP+ DAC direct attach cable
- Aggregate data rate up to 41.25Gbps
- Pre-terminated 30AWG twin-axial copper cable
- 4x 10.3125Gbps NRZ XLPPI electrical interface
- Minimum bending radius 35mm
- MSA memory accessible via 2-wire interface
- Single 3.3V power supply voltage
- Extremely low power consumption near 0W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8436, SFF-8635, SFF-8661, SFF-8679, SFF-8636
- Compliant with IEEE 802.3ba 40GBASE-CR4
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 40G Ethernet
- Data Center
Specification
Part Number | QSFP-40G-DAC30-0M5 | Topology | QSFP+ to QSFP+ |
Max Data Rate | 41.25Gbps | Cable Length | 0.5m (1.64ft) |
Cable Type | Twinax | Wire Gauge | 30AWG |
Jacket Meterial | OFNR (PVC) | Minimum Bend Radius | 35mm |
Power Consumption | 0W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
