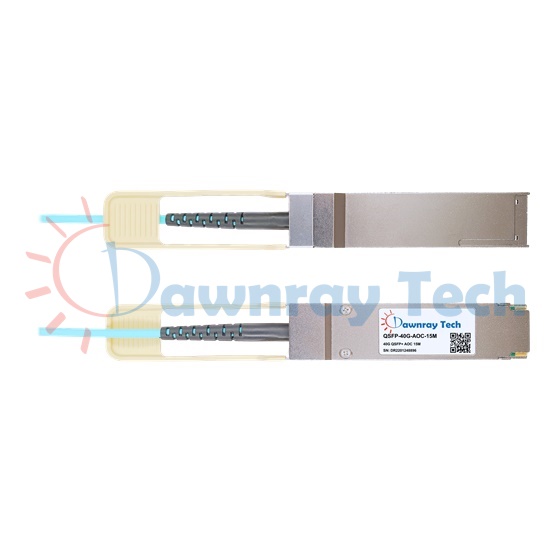

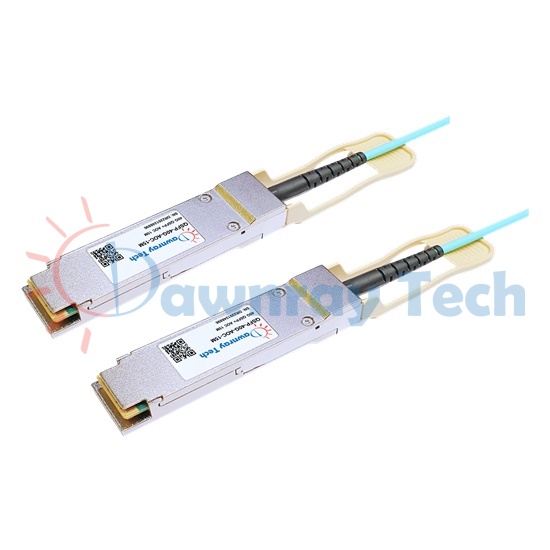

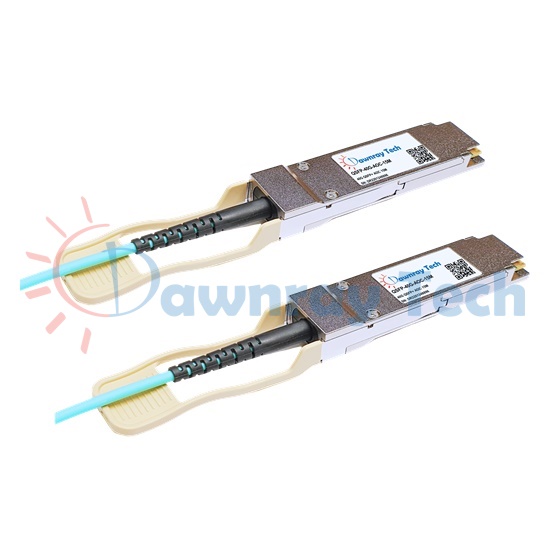

15m (49.21ft) Generic QSFP-40G-AOC-15M Compatible QSFP+ to QSFP+ AOC 40GBASE-CR4 40Gbps Multi Mode Fiber Active Optical Cable
Dawnray’s QSFP-40G-AOC-15M AOC is a 40Gbps QSFP+ to QSFP+ active optical cable for use in 40GBASE Ethernet network. QSFP+ AOC provides 41.2Gb/s throughput for 15m interconnection with laser-optimized multi-mode fiber optical cable. This AOC is fully compliant with QSFP+ Multi-Source Agreement (MSA), IEEE 802.3ba 40GBASE-CR4 and XLPPI standard. Its optical fiber cable is pre-terminated with MSA compliant 38-pin edge type connectors. The AOC cable implements 4 independent 10.3125Gbps NRZ transmit and receive signal channels in each fiber for an aggregate 41.25Gbps data rate. Standard length options cover from 1 meter to 30 meters. Built-in Digital Diagnostic Monitoring/Digital Optical Monitoring (DDM/DOM) support is present for real-time performance monitoring via 2-wire (TWI/I2C) interface. Our AOCs are factory pre-programmed for compatibility, perform alternatively to generic/MSA active optical cables.
Feature
- Hot pluggable QSFP+ to QSFP+ AOC active optical cable
- Aggregate data rate up to 41.25Gbps
- Pre-terminated multi-mode fiber cable
- 4x 10.3125Gbps NRZ XLPPI electrical interface
- Minimum bending radius 7.5mm
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 1W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8436, SFF-8635, SFF-8661, SFF-8679, SFF-8636
- Compliant with IEEE 802.3ba 40GBASE-CR4
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 40G Ethernet
- Data Center
Specification
Part Number | QSFP-40G-AOC-15M | Topology | QSFP+ to QSFP+ |
Max Data Rate | 41.25Gbps | Cable Length | 15m (49.21ft) |
Cable Type | OM3 Multi Mode Fiber | Jacket Meterial | OFNP |
Minimum Bend Radius | 7.5mm | Signal Conditioner | None |
Power Consumption | 1W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
