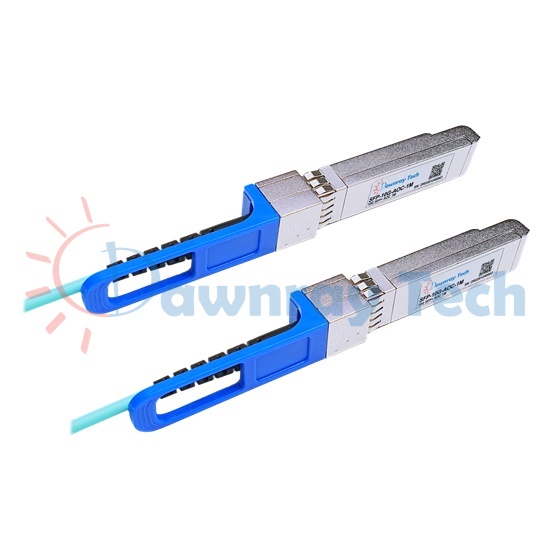

1m (3.28ft) Generic SFP-10G-AOC-1M Compatible SFP+ to SFP+ AOC 10GBASE-CR 10Gbps Multi Mode Fiber Active Optical Cable

1m (3.28ft) Generic SFP-10G-AOC-1M Compatible SFP+ to SFP+ AOC 10GBASE-CR 10Gbps Multi Mode Fiber Active Optical Cable

Dawnray’s SFP-10G-AOC-1M AOC is a 10Gbps SFP+ to SFP+ active optical cable for use in 10GBASE Ethernet network. SFP+ AOC provides 10.31Gb/s throughput for 1m interconnection with laser-optimized multi-mode fiber optical cable. This AOC is fully compliant with SFP+ Multi-Source Agreement (MSA), IEEE 802.3ae 10GBASE-CR and SFI standard. Its optical fiber cable is pre-terminated with MSA compliant 20-pin edge type connectors. Standard length options cover from 1 meter to 30 meters. Built-in Digital Diagnostic Monitoring/Digital Optical Monitoring (DDM/DOM) support is present for real-time performance monitoring via 2-wire (TWI/I2C) interface. Our AOCs are factory pre-programmed for compatibility, perform alternatively to generic/MSA active optical cables.

Feature

• Hot pluggable SFP+ to SFP+ AOC active optical cable
• Data rate up to 10.3125Gbps
• Pre-terminated multi-mode fiber cable
• 10.3125Gbps NRZ SFI electrical interface
• Minimum bending radius 7.5mm
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 1W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with SFF-8431, SFF-8432, SFF-8419, SFF-8472
• Compliant with IEEE 802.3ae 10GBASE-CR
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 10G Ethernet
• Data Center

Specification
