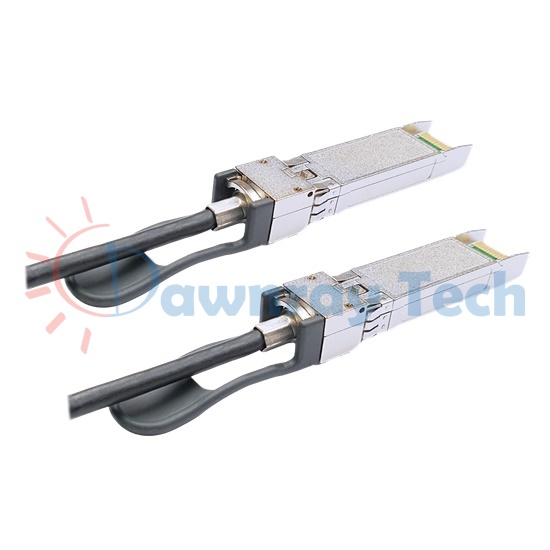

10m (32.81ft) Generic SFP-10G-ACC24-10M Compatible SFP+ to SFP+ ACC 10GBASE-CR 10Gbps Active Direct Attach Twinax Copper Cable

10m (32.81ft) Generic SFP-10G-ACC24-10M Compatible SFP+ to SFP+ ACC 10GBASE-CR 10Gbps Active Direct Attach Twinax Copper Cable

Dawnray’s SFP-10G-ACC24-10M DAC is an active 10Gbps SFP+ to SFP+ direct attach cable for use in 10GBASE Ethernet network. SFP+ active DAC provides 10.31Gb/s throughput for 10m interconnection with high speed twin-axial copper cable. This DAC is fully compliant with SFP+ Multi-Source Agreement (MSA), IEEE 802.3ae 10GBASE-CR and SFI standard. Its twin-axial copper cable’s wire gauge is 24AWG and pre-terminated with MSA compliant 20-pin edge type connectors. Standard length options cover from 1 meter to 10 meters. MSA memory map is accessible via 2-wire (TWI/I2C) interface. Our active DACs are factory pre-programmed for compatibility, perform alternatively to generic/MSA direct attach cables.

Feature

• Hot pluggable SFP+ to SFP+ DAC active direct attach cable
• Data rate up to 10.3125Gbps
• Pre-terminated 24AWG twin-axial copper cable
• 10.3125Gbps NRZ SFI electrical interface
• Minimum bending radius 30mm
• MSA memory accessible via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 0.5W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with SFF-8431, SFF-8432, SFF-8419, SFF-8472
• Compliant with IEEE 802.3ae 10GBASE-CR
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 10G Ethernet
• Data Center

Specification
