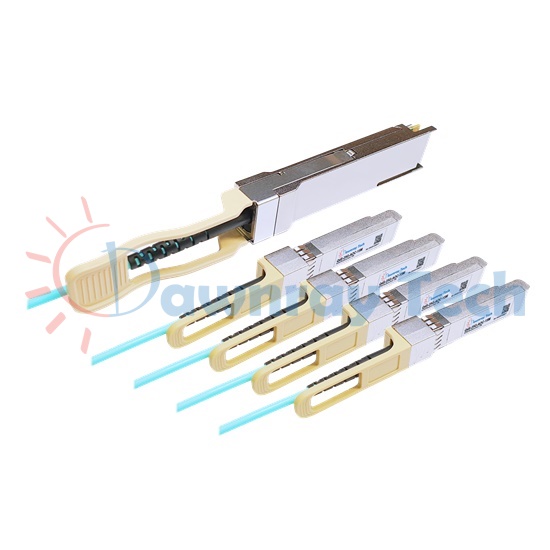

15m (49.21ft) Generic Q4S-25G-AOC-15M Compatible QSFP28 to 4 SFP28 AOC 25GBASE-CR 4x 25Gbps Multi Mode Fiber Breakout Active Optical Cable

15m (49.21ft) Generic Q4S-25G-AOC-15M Compatible QSFP28 to 4 SFP28 AOC 25GBASE-CR 4x 25Gbps Multi Mode Fiber Breakout Active Optical Cable

Dawnray’s Q4S-25G-AOC-15M AOC is a 4x 25Gbps QSFP28 to 4 SFP28 active optical breakout cable for use in 25GBASE Ethernet network. QSFP28 breakout AOC provides 4x 25.78Gb/s throughput for 15m interconnection with laser-optimized multi-mode fiber optical cable. This AOC is fully compliant with QSFP28/SFP28 Multi-Source Agreement (MSA), IEEE 802.3by 25GBASE-CR and 25GAUI standard. Its optical fiber cable is pre-terminated with MSA compliant 38/20-pin edge type connectors. The breakout AOC cable splits 4 branches of 25Gbps NRZ signals from QSFP28 into SFP28. Standard length options cover from 1 meter to 30 meters. Built-in Digital Diagnostic Monitoring/Digital Optical Monitoring (DDM/DOM) support is present for real-time performance monitoring via 2-wire (TWI/I2C) interface. Our breakout AOCs are factory pre-programmed for compatibility, perform alternatively to generic/MSA active optical cables.

Feature

• Hot pluggable QSFP28 to 4 SFP28 AOC breakout active optical cable
• Split 100Gbps into 4 branches of 25Gbps
• Pre-terminated multi-mode fiber cable
• 25.78125Gbps NRZ 25GAUI electrical interface
• Minimum bending radius 7.5mm
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 3.5W/1W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with SFF-8665, SFF-8661, SFF-8679, SFF-8636, SFF-8402, SFF-8432, SFF-8419, SFF-8472
• Compliant with IEEE 802.3by 25GBASE-CR
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 25G Ethernet
• Data Center

Specification
